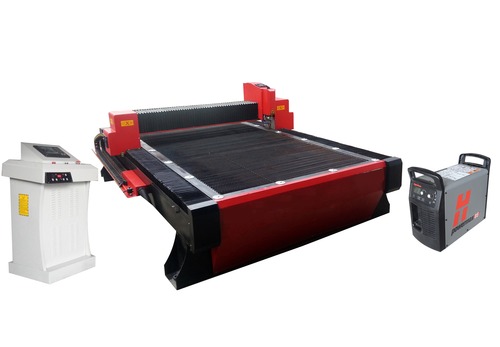

High speed table type CNC Plasma Cutting Machine

High speed table type CNC Plasma Cutting Machine
High speed table type CNC Plasma Cutting Machine
Product Code : 019
Product Description
HIGH SPEED TABLE TYPE CNC PLASMA CUTTING

Features

1. High Stability- The advanced mechanism designs ensure the high performance to the dynamic response.

2. Reduce the finishing work- As the cutting error is very small, so can reduce the work piece reworking.

3 .Automatic height tracking system- Automatic level control systems with fast response characteristics have guaranteed the quality under the condition of high speed cutting.

4. Easy Installation and maintenance- Reasonable modular design is convenient for assembly and maintenance.

Technical Parameter

Model....……………………………………………………………….   FC-1530

Input Voltage…………………………………………………………. AC- 220 Volt.  Frequency…………………………………………………………….. 60/50 Hz

Effective Cutting Area……………………………………. X Axis: 1500mm, Y Axis: 3000mm.

Running Speed………………………………………………………. 100-10000mm/max.

Cutting Speed……………………….……………………………….. 100-8000mm/max.

CuttingThickness……………………….………… Upto 15mm. (According to Plasma Power).

Controller………………………………………………………….. LCD 7″Color Screen, Starfire.

Software……………………………………………………………… Fast Cam  Australia.

Manual cutting up and down device…………………………….. Standard Stroke 100mm.

THC (Auto plasma height control system)………………………Standard Stroke 80mm.

Positioning accuracy……………………………………………….. ±0.02mm.

Repeatability precision…………………………………………….. ±0.02mm.
